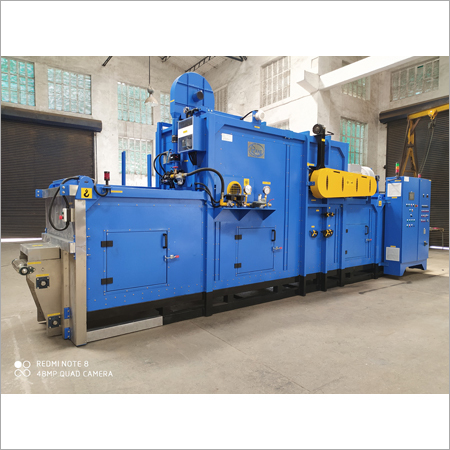

Industrial Conveyor Ovens

About Industrial Conveyor Ovens

Industrial conveyor ovens are highly demanded in industrial sectors that demand drying, heating and curing of material on continuous basis. The types of conveyor ovens are chain conveyor oven, belt conveyor oven, and many more. The highly functional, durable and high performing ovens are known to deliver high output while taking minimum space. There are several heating zones along the path of the belt in these ovens where either same or variable temperature can be set.

Rane Domestic Appliances brings forth several industrial conveyor ovens which can be either electrically or LPG operated, and suitable for low or high temperature application. The ovens with variable speed and several heating zones and individual control are also available. The vertical down airflow at high volume supplies uniform air temperature on all interior components. It is possible to process same workpieces in bulk on the continuous belt. The material can be pre-heated, cured, bonded, dried and even heat treated.

Technical specification

Parameter	Specification
Temperature Range	Ambient to 400 C
Tolerance	Temp: (+-5C)
Size	As per Requirement- Custom Built
Exterior	MS or GI Sheets with Powder Coated
Interior	Stainless Steel 304- As per request
Airflow Type	Horizontal Airflow or Combination Airflow
Heating Source	Electrical Heater or LPG/CNG Open Fired Burner
Electrical Load	2-50 KW as per Size of the Chamber
Application	Curing, Composite Curing, Paint Curing, Battery Plates Curing

Product Features

• Controls-PLC Programmable Logic Controller
• Display- Advanced HMI with Touch screen Display
• Available in all heat types Electrical As well as Gas Fired
• VFD: Variable frequency drive for conveyor speed adjustability
• Heavy Industrial Construction
• Modulating Burner with Gas Train
• Belt Return Inside the oven, Minimizing Heat Loss
• Stainless Steel chain with Honeycomb Type chain or Flat Wire Chain
• Loading and unloading or Entry or Exit platform
• 4-5 Insulated wall, ceiling and Floor with high density Glass Wool Insulation
• Supply duct to deliver heated air to the product in a top-down flow pattern, a bottom-up pattern, or a top-bottom pattern
• Controls- All digital, microprocessor, thermocouple input temperature controller.
• Display- Advanced HMI with Touch screen Display
• Conveyor extensions on each end provides loading/unloading areas
• Force Exhaust , with fan, to exhaust heat and fumes escaping open ends of heat zone
• Powder coated Exterior Sheet
• Operating temperatures up to 400C
• Audible Alarm, interlocked with timer or other control
• Fully adjusted and factory tested PRIOR to shipment to reduce installation and Start up times

Configurable Heating Zones for Optimal Process Flexibility

The ICO-1500 conveyor oven offers either single or multiple configurable heating zones, allowing you to tailor the system to the specific needs of your application. This flexibility makes the oven ideal for industries where precise and consistent heat treatment is critical, such as materials processing, electronics, and automotive components manufacturing.


Safe and Efficient Operation with Advanced Features

Multiple safety mechanisms are integrated for peace of mind, including an overheat protection system, emergency stop switch, insulated doors with safety locks, and adjustable exhaust dampers for controlled ventilation. A 100 mm thick layer of high-density mineral wool provides superior insulation, helping you save energy while maintaining consistent internal temperatures.


Precision Control and Uniform Heat Distribution

Operated via a digital PID controller, the oven maintains exact temperatures with an accuracy of 1C. The stainless steel mesh conveyor and forced hot air circulation system guarantee uniform heat application across the batch, enhancing product quality and throughput. An LED digital display ensures operational parameters are visible at all times.
