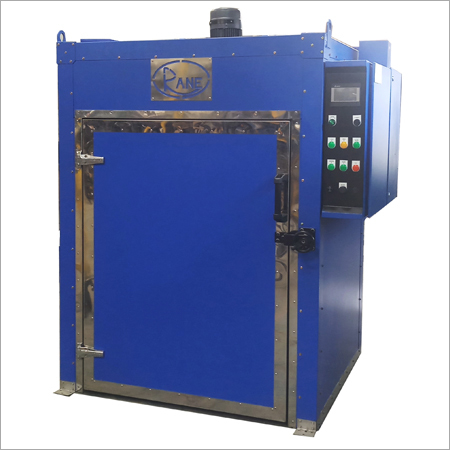

Battery Plate Drying Oven

Name: Battery Plate Drying Oven
Brand: RANE DOMESTIC APPLIANCES
Price: 200000 -
Availability: InStock

Price 200000 - 200000 INR/ Piece

Get a Price/Quote

MOQ : 1 , , Piece

Battery Plate Drying Oven Specification

Control Mode
Digital PID Controller

Condition
New

Heating Capacity
12 kW

Accuracy
1C

Heating Method
Forced Air Circulation

Power Source
Electric

Type
Batch Type Drying Oven

Model
BPD-1800A

Internal Size
1800 mm x 1200 mm x 1500 mm

External Size
2100 mm x 1400 mm x 1900 mm

Volume
3240 L

Air Flow
Adjustable, Uniform Distribution

Temperature Range
Ambient to 250C

Material
Stainless Steel (Inner), Mild Steel Powder Coated (Outer)

Dimension (L*W*H)
2100 mm x 1400 mm x 1900 mm

Power
12 kW

Voltage
415 V, 3 Phase

Surface Finish
Powder Coated

Battery Plate Drying Oven Trade Information

Minimum Order Quantity
1 , , Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1-2 Week

About Battery Plate Drying Oven

Battery Plate Drying Ovens are used across a range of industries and research laboratories for simple applications, such as drying complex processes that require controlled heating and temperature uniformity such as bonding and curing. Drying helps remove moisture content from coatings and various substrates.

Our battery Plate Drying Ovens generally operate from ambient heat to 150 Degree C (400F.) which either Electrical Heating or LPG Fired ovens. Drying ovens may be designed for batch processing or with a conveyor for continuous processing. Rane ovens builds high performance drying ovens of multiple sizes, processing requirements and temperature capabilities to meet and exceed clients, laboratory and production applications.

Technical Specification

Parameter	Specification
Temperature Range	Ambient to 200 °C
Tolerance	(±3°C)
Size	As per Requirement- Custom Built
Exterior	MS or GI Sheets with Powder Coated
Interior	Stainless Steel- As per request
Airflow Type	Horizontal Airflow or Combination Airflow
Heating Source	Electrical Heater or LPG/CNG Fired Burner
Electrical Load	2-50 KW as per Size of the Chamber
Application	Drying, Pre-Heating, Baking, Stress Relieving, Annealing

Product Features

Controls- Programmable Logic Controller
Display- Advanced HMI With Touch Screen Display
Available in all heat types
Top Mounted High volume recirculation blowers or fans to conserve valuable floor space at your facility
PUF insulated Wall and Door for Low temperature
Glass Wool Insulated walls for High Temperature Application
Heat Exchanger System for LPG Fired Oven
Fully adjusted and factory tested PRIOR to shipment to reduce installation and Start up times
Force exhaust Blower.

Advanced Plate Drying Technology

The BPD-1800A drying oven utilizes forced air circulation, powered by durable Nichrome wire heating elements and a precise digital PID controller. This combination ensures rapid, uniform drying of battery plates, enhancing productivity while minimizing energy usage. High-density mineral wool insulation further improves thermal efficiency, making the oven reliable for continuous industrial use.

Superior Safety and User Convenience

Safety is central to the ovens design, with integrated over-temperature protection, an alarm system, and a digital LED controller display. Easy-access double doors and movable, lockable castors simplify operational workflow, while adjustable ventilation ports enable fine-tuned exhaust management. The user-centric features make it suitable even for demanding industrial environments.

Robust Construction and Finish

Built for durability, the oven boasts a stainless steel inner chamber and a powder-coated mild steel exterior, resisting corrosion and heat-related damage. Heat-resistant epoxy paint enhances longevity, and a capacious 3240L volume accommodates larger batch sizes, meeting the needs of contemporary battery manufacturing.

FAQs of Battery Plate Drying Oven:

Q: How does the BPD-1800A Battery Plate Drying Oven remove moisture from battery plates?

A: The oven employs forced air circulation combined with high-performance Nichrome wire heating elements. Air is evenly distributed across all trays, efficiently extracting moisture from battery plates during the drying process, ensuring consistent and rapid results.

Q: What safety features are included in this oven for industrial use?

A: Key safety elements include over-temperature protection, an audio-visual alarm system, and a digital LED display for continuous monitoring. These features safeguard both the equipment and operators during the high-temperature drying cycles.

Q: When should this drying oven be used in the battery production process?

A: The BPD-1800A is specifically used after the battery plates are formed and washed, right before assembly. The oven effectively removes residual moisture, preparing plates for further manufacturing steps like pasting or assembly.

Q: Where can the oven be installed, and is it portable within the facility?

A: Designed for industrial settings such as battery manufacturing plants, the oven features heavy-duty lockable castors, making it easy to move and position as required within workshops or production lines.

Q: What are the primary benefits of using the BPD-1800A model for battery plate drying?

A: This model offers energy-efficient performance, large batch drying capacity, uniform heat distribution, user-friendly controls, and robust construction. Collectively, these benefits optimize productivity and reduce operational downtime for battery manufacturers.

Q: How is the temperature and drying accuracy controlled in this oven?

A: A digital PID controller governs temperature precisely (with 1C accuracy), and the user can monitor operating parameters through the clear LED display, ensuring optimum conditions for every drying batch.

Q: What materials and finishes improve the durability of this oven?

A: The oven leverages a stainless steel inner chamber for corrosion and heat resistance and a powder-coated mild steel exterior finished with heat-resistant epoxy paint. This robust structure ensures a long service life, even under continuous industrial usage.
